SMA STP 10.0

You need to be logged in to view information

Unit:	pc
Code:	916-537
Model:
Product warranty (months):	5
Brand:	SMA

You need to be logged in to view information

Stock availability

You need to be logged in to view information

Description

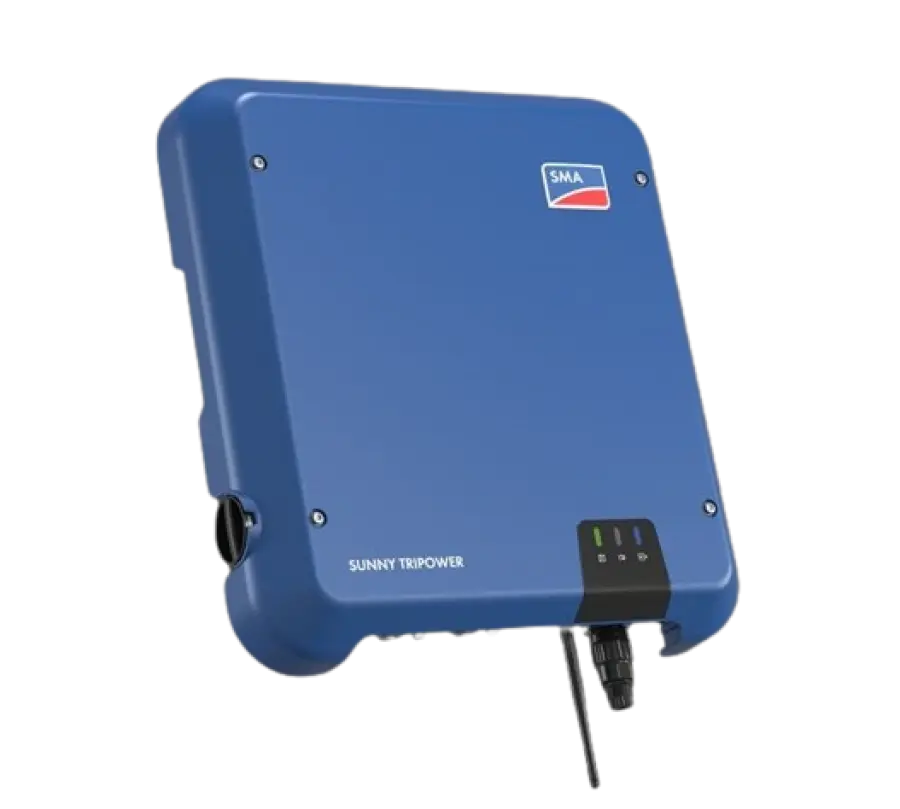

STP 10.0PV inverter for three-phase grid feed-in, Pac,r/Sac, max 10.0 kW/ 10.0 kVA, transformerless, SMA Smart Connected, SMA ShadeFix, easy installation and monitoring via integrated web server with Smart Inverter Screen and installation wizard or by using the SMA 360° APP, integrated RS-485 communication, WLAN and Ethernet, SMA Modbus and SunSpec protocol, SUNCLIX DC terminal, DC disconnector, 2 independent MPP trackers, parallel connection of MPP trackers, documentation in all European languages

Downloads

Videos

Links

60-stp8-10-3av-40-ds-en-40 (1)

Datasheet

Installation manual

Other

60_COM-RES-EWTC-FR-24 GARANTIE

60_COM-RES-GB-FR-75 GARANTIE

Warranty Statement

{common::4::brochure}

60_ZE_STPXX-3SE-40-C10-11-EN-10

60_ZE_STPXX-3SE-40-VDE4105_0124-EN-11

60_ZE_VDE-0126-STPXX-3SE-40-FR-10

Certificate

Order Management

Technical specification

Inverters

Performance	Performance 15000
Phase	Phase 3
String	String 3
MPPT	MPPT 2
Power AC Out	PowerAcOut 10000 Watt
Power DC IN	PowerDcIn 15000 Watt
P	Weight 20.5 kg
Internal article group	Internal article group sma_3ph_b14
